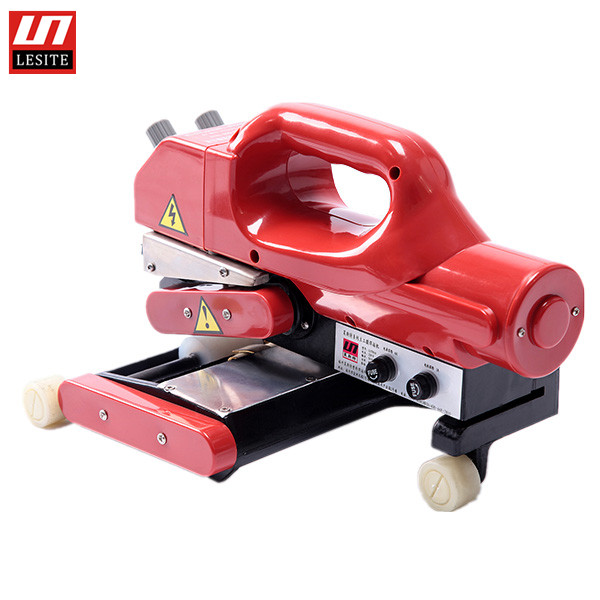

HDPE Geomembrane Wedge Welding Machine LST810
Advantage
Longer overlap width?Overlap width 150mm, meeting special welding requirements
roller
Imported silicone pressure roller, good elasticity, high temperature resistance, strong wear resistance; special knurled steel pressure roller, non-slip, non-wearing, better welding effect of film material above 1mm.
Hot wedge
Special wedges are matched with 1100W/800W high-power heating tube, high heating efficiency and long service life
| Model | LST810 |
| Rated Voltage | 230V/120V |
| Rated Power | 800W/1100W |
| Frequency | 50/60HZ |
| Heating Temperature | 50~450℃ |
| Welding Speed | 1-5m/min |
| Material Thickness Welded | 0.2mm-1.5mm(single layer) |
| Seam Width | 12.5mm*2,Interior Cavity 12mm |
| Weld Strength | ≥85% material |
| Overlap Width | 15cm |
| Digital Display | No |
| Body weight | 5.5kg |
| Warranty | 1 year |
| Certification | CE |
